3" Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles | 120 Ton
3" Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles | 120 Ton

3" Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles | 120 Ton

The Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles are designed for peak...
$1,644.46
$1,644.46
Subtotal: $1,644.46
3" Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles | 120 Ton

3" Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles | 120 Ton

$1,644.46
3" Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles | 120 Ton
3" Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles | 120 Ton

3" Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles | 120 Ton

$1,644.46
Description
Description
x

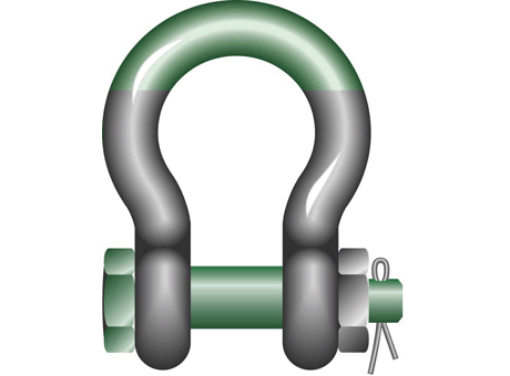

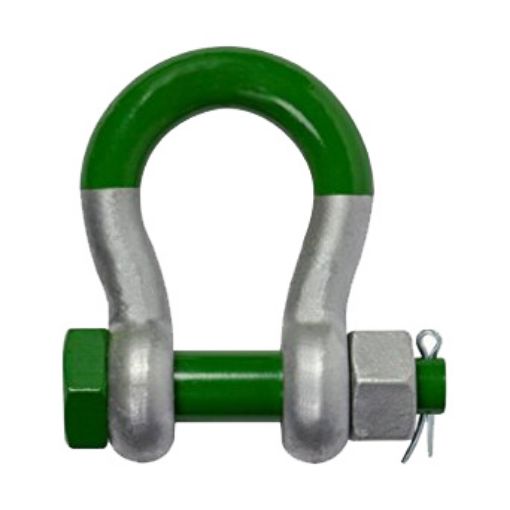

The Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles are designed for peak performance. Upset forged with no drop forge flashing marks and featuring a super smooth galvanized finish, these shackles are built to last. Embossed information enhances safety and compatibility with synthetic lifting slings, making them a reliable choice for demanding applications.

WLL: 120 Ton



Material

Bow and pin: Alloy steel, Grade 8 quenched and tempered

Design Factor

5/1

Standards

U.S. Federal Specification RR-C-271 IVA, Class 3, Grade A, ASME B30.9

Finish

Hot dip galvanized

Temperature Range

-4°F (-20°C) to +392°F (200°C)

Certification

No extra charge for 3.1 material, proof test or EC declaration of conformity certificates.

Note

For additional dimensional and tolerance information, CAD drawings are available on request.





                                                            Dimensions (Inches)
   Work               Load                Limit Diameter      Bow Diameter Pin Diameter Eye Width        Eye Width Inside Bow Inside Length Width      Bow Overall Length Length    Bold Overall Width Nut
Metric               Tons a                    Inch b                    Inch Not      Shown d                    Inch e                    Inch f                    Inch g                    Inch h                    Inch i                    Inch j                    Inch k                    Inch
3.3 0.5 0.63 1.34 0.5 0.88 2 1.25 3.5 3.22 2.28 0.5
5 0.63 0.75 1.56 0.63 1.06 2.53 1.69 4.34 3.84 2.94 0.66
7 0.75 0.88 1.81 0.75 1.22 3 2 5.09 4.5 3.5 0.75
9.5 0.88 1 2.06 0.88 1.81 3.28 2.28 5.66 5.13 4.03 0.88
12.5 1 1.13 2.31 0.97 1.69 3.75 2.69 6.47 5.91 4.66 0.97
15 1.13 1.25 2.59 1.09 1.84 4.25 2.94 7.28 6.53 5.16 1.06
18 1.25 1.38 2.84 1.25 2 4.53 3.28 7.91 7 5.78 1.19
21 1.38 1.5 3.16 1.38 2.25 5.25 3.63 8.94 7.75 6.38 1.94
30 1.5 1.63 3.47 1.5 2.38 5.75 3.91 9.81 7.94 6.88 0.75
40 1.75 2 4.06 1.78 2.91 7 4.97 11.81 9.81 8.5 0.91
55 2 2.25 4.59 2.25 3.28 7.75 5.44 13.44 11.25 9.91 1.03
85 2.5 2.75 5.63 2.75 4.13 10.25 7.09 17.22 13.53 12.59 1.25
120 3 3.25 6.38 3.28 5 12.94 7.47 21.06 15.88 14.03 1.56
150 3.75 3.75 8.19 3.59 5.78 15.75 9.38 25.47 20.13 16.84 1.97
175 4 4.25 9.38 4.03 6.66 16.16 10.81 27.09 22.09 19.09 2.38


Certifications:
