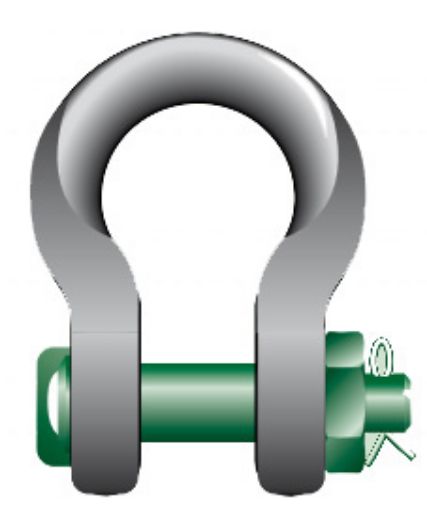

2-3/8" Van Beest® P-6033 Wide Body Sling Shackles | 55 Ton

Material

Bow and pin: High tensile steel, Grade 8 quenched and tempered

Design Factor

5/1

Finish

Painted: Shackle bow-Silver, Shackle pin-Green

Temperature Range

-4°F (-20°C) to +392°F (200°C)

Certification

No extra charge for 3.1 material, proof test or EC declaration of conformity certificates. DNV 2.7-1 certification available for 2 ton and larger shackles.

Note

For additional dimensional and tolerance information, CAD drawings are available on request.

Dimensions (Inches)

Work
Load
Limit
(t)

Diameter

Width

Length

Thickness

Bearing
Surface

Unit

Weight
(Lbs.)

Bow
a

Pin
b

Eye
c

Eye
d

Inside
e

Bow
g

Overall
j

Inside
f

Overall
h

Bolt
i

Nut
k

l

18

1-3/8

1-3/8

2-23/32

1-3/16

2-1/8

4-1/32

7-3/32

5-13/16

9-13/32

6-25/32

1-5/32

2-17/32

18

30

1-9/16

1-21/32

3-17/32

1-3/8

2-23/32

4-31/32

7-7/8

6-1/2

10-31/32

8-5/32

1-11/32

3-1/8

29

40

2-5/32

2

4-9/32

1-25/32

3-5/16

5-1/2

9-1/4

7-27/32

13-1/32

9-29/32

1-1/2

3-13/16

46

55

2-3/8

2-1/4

4-17/32

2-5/32

3-17/32

6-5/16

10-5/8

9-7/16

15-5/16

11-9/16

1-25/32

3-15/16

66

75

2-11/16

2-3/4

4-29/32

2-1/8

4-11/32

7-9/32

12-15/32

11-13/32

18-5/8

12-7/8

2-1/8

4-23/32

106

125

3-11/32

3-5/32

6-1/16

3-11/32

5-13/32

8-21/32

15-11/32

14-13/32

22-15/16

16-25/32

2-17/32

5-29/32

203

150

3-11/16

3-3/4

7-1/16

3-1/2

5-25/32

9-31/32

17-3/32

15-13/32

25-13/32

17-1/8

1-31/32

6-11/16

309

200

4-11/32

4-1/8

7-27/32

3-15/16

6-7/32

11-1/32

18-31/32

18-15/16

29-7/8

18-1/2

1-31/32

8-1/16

452

250

4-31/32

4-23/32

8-15/16

4-11/32

7-1/16

11-13/16

20-7/8

21-11/32

33-13/16

20-7/16

2-3/8

9-7/16

582

300

5-5/16

5-9/32

9-21/32

4-13/16

7-11/16

13-25/32

24-13/32

23-21/32

37-9/32

22-5/8

2-3/4

10-7/16

794

400

6-5/16

6-5/16

11-17/32

5-23/32

9-3/32

14-9/16

27-5/32

22-11/16

38-25/32

26-9/16

3-5/32

12-19/32

1279

500

6-11/16

7-3/32

12-29/32

6-5/16

10-11/32

17-23/32

31-3/32

26-13/16

44-17/32

29-7/16

3-17/32

13-11/32

1720

600

7-15/32

7-7/8

13-11/16

6-11/16

11-3/8

19-9/32

34-1/16

29-3/16

48-19/32

31-27/32

3-15/16

14-9/16

2161

700

7-7/8

8-15/32

15-7/16

7-15/32

12-13/32

21-1/4

35-15/32

29-9/16

50-9/16

34-19/32

3-15/16

15-3/4

2998

800

8-19/32

9-1/16

16-17/32

7-7/8

13-15/32

21-13/16

37-9/32

33-1/2

56-5/32

37-3/32

4-11/32

16-17/32

3153

900

9-17/32

10-1/32

18-11/32

8-21/32

14-1/2

22-27/32

40-9/32

33-1/2

58-19/32

40-9/32

4-23/32

17-5/16

3638

1000

10-1/4

10-5/8

19-9/32

9-7/16

15-23/32

24-3/16

43-19/32

33-1/2

60-5/16

43-7/16

4-23/32

18-1/8

6548

1250

11-7/32

11-13/16

20-3/32

10-1/4

17-25/32

25-19/32

46-17/32

36-21/32

65-19/32

48-5/16

5-29/32

20-7/8

8157

1550

11-7/32

12-19/32

21-21/32

11-1/32

19-1/32

26-25/32

49-11/32

37-13/32

67-5/16

51-3/16

5-29/32

22-1/16

8818
