Description

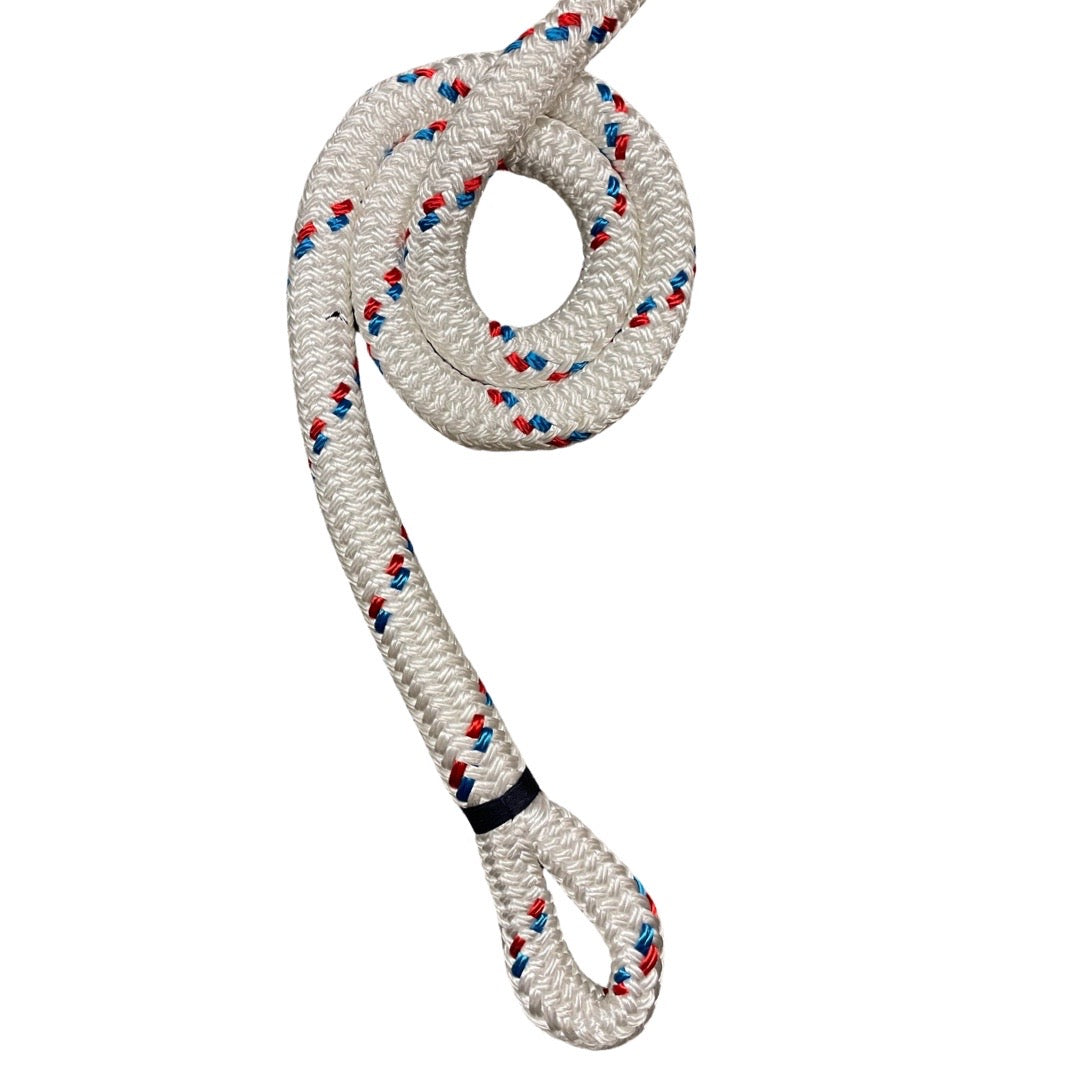

xEnhance your Digger Derrick's capabilities with Rope Braiders' Echo DB Jib Line – the premier uncoated Polyester Double Braid winch line engineered for unmatched power and precision. Fabricated from robust high-tensile double braid polyester, this torque-free line delivers an exceptional strength-to-weight ratio, critical for rigorous heavy-duty lifting tasks. Its minimal stretch characteristic guarantees efficient and precise operations. Proudly spliced in-house, our ropes offer not only flexibility in rigging but also the cutting-edge Scannable AI technology. Each Echo DB line comes equipped with an NFC tag, ensuring full traceability of the rope's specifications, seamless inventory management, and accurate service life tracking. Trust Echo DB for unparalleled lifting and rigging performance that's smart and secure.
| Product Name | Material | Splice: | Diameter inch | Diameter mm | Color | Approx. Weight lbs/100ft. | Approx. Weight kg/100meters | Minimum Breaking Strength Spliced Rope (LBS) |
Minimum Breaking Strength Unspliced Rope
(Metric Tonnes) ISO2307 |
||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 3/8" | 10 | White w/Tracers | 4.5 | 6.7 | 4,800 | 2.4 | ||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 1/2" | 12 | White w/Tracers | 8.2 | 12.2 | 8,800 | 4.5 | ||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 9/16" | 14 | White w/Tracers | 11 | 16.4 | 11,300 | 5.7 | ||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 5/8" | 16 | White w/Tracers | 14 | 20.8 | 13,900 | 7 | ||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 3/4" | 18 | White w/Tracers | 18 | 26.8 | 17,300 | 8.7 | ||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 7/8" | 22 | White w/Tracers | 27.1 | 40.3 | 25,400 | 12.8 | ||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 1" | 24 | White w/Tracers | 34 | 50.6 | 33,300 | 16.8 | ||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 1-1/8" | 28 | White w/Tracers | 45.3 | 67.4 | 41,000 | 20.6 | ||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 1-1/4" | 30 | White w/Tracers | 53.9 | 80.2 | 48,700 | 24.5 | ||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 1-1/2" | 36 | White w/Tracers | 73.3 | 109 | 75,100 | 32.2 | ||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 1-5/8" | 40 | White w/Tracers | 85.9 | 128 | 87,200 | 37.4 | ||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 1-3/4" | 44 | White w/Tracers | 104 | 155 | 104,000 | 44.6 | ||||||||||||||||||
| Echo DB (Uncoated) | Core: HT POLYESTER Cover: HT POLYESTER |
Double Braid Class. I | 2" | 48 | White w/Tracers | 124 | 185 | 124,000 | 53.1 |
